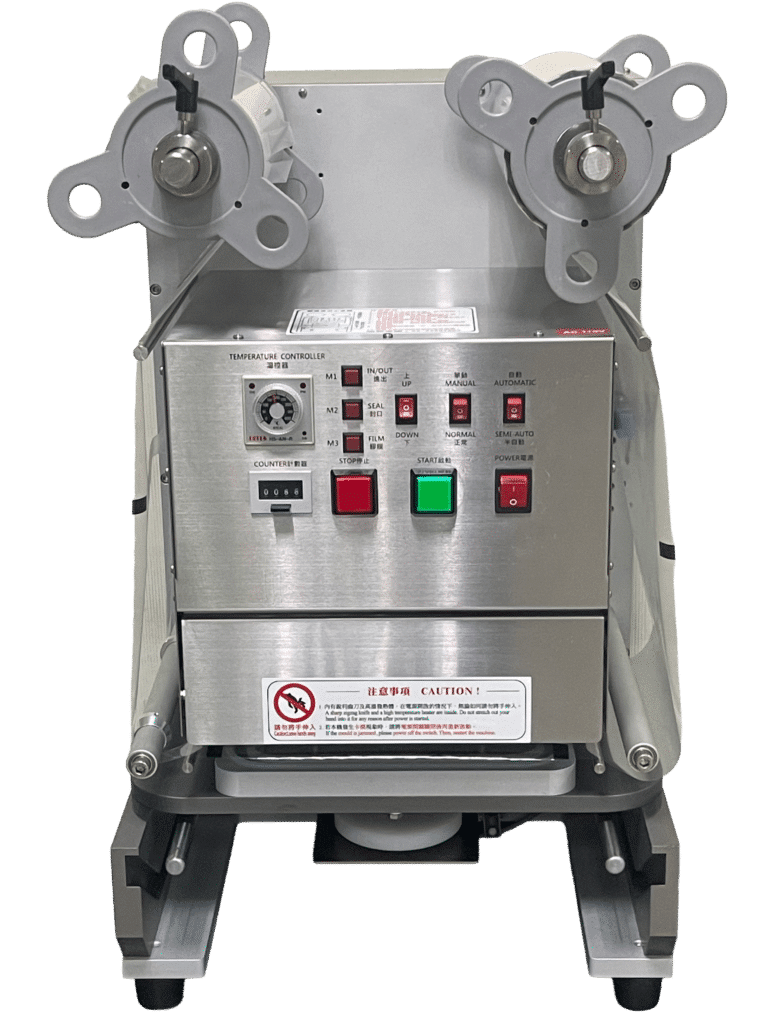

K-400 Automatic Sealing Machine

operation of panel

Maintenance and lubrication

Film Replacement


◎Product Characteristics:

Surface oxidation treated aluminum alloy makes the machine sanitary, sturdy and durable.
The mature technology ensures the machine a stable performance with good price.
Micro-controlled system with film detection ensures high precision in sealing.
Anthropomorphized design which can stop the foreign materials going inside the machine makes it both sanitary and easy and safe to operate with the function of automatic reset.
The patent transmission system and cup in-and-out device is applied to almost all kinds of containers with a fast and convenient container placing and ejection.
Automatic count of the sealed containers saves the operators both a lot of time and effort.
The mould of container can be modified according to customers specification.

◎Field of Application:

The suitable material for the container can be PP, PE, PET, paper etc., and suitable for all kinds of beverage, vegetable, agricultural products, aquatic product, meat, dried fruit and other foods’ packing. And the suitable material for the film can be PET/PP or PET/PE, and easy-open film etc.

◎Technicl Data:

Product Model K-400
Voltage (V/Hz) 110/220/50/60
Power (W) 500
Sealing Range (mm) 220*175 or < ∮180
Machine Dimension (L*W*H) (mm) 530*400*710
Weight (KG) 70
Capacity (PSC/HR)  300~400
